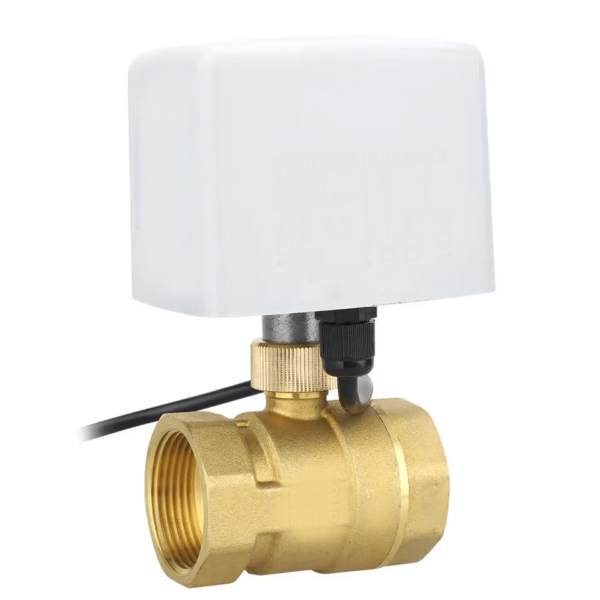

1 Inch 24VDC Motorized Ball Valve (Electrical Actuator Valve) – 2 Way, 3 Wire, Brass Body
Original price was: ₹4,500.00.₹3,200.00Current price is: ₹3,200.00.Nos
10000 in stock
Free Shipping
Customer Support
Assure Quality
Secure Payment
Product Description
The TruGet 1 Inch 24VDC Motorized Ball Valve (2 Way, 3 Wire) is a high-performance electric actuator valve designed for reliable automatic ON/OFF flow control in industrial automation and process applications. Built with a durable forged brass body and powered by a 24VDC electric actuator, this valve provides safe, energy-efficient, and dependable operation for water, air, oil, and other compatible non-corrosive fluids.
The 2-way, 3-wire actuator is ideal for integration with PLCs, controllers, timers, and automation systems. Its full-port ball design ensures maximum flow with minimal pressure loss, while PTFE seats provide excellent sealing and leak-proof performance.
Key Features
Valve Size: 1 Inch (25 mm)
Valve Type: 2 Way Motorized Ball Valve
Wiring: 3 Wire
Actuator Voltage: 24VDC
Body Material: Forged Brass
Full-port design for maximum flow capacity
High-torque electric actuator
Low power consumption
PTFE seats for leak-proof sealing
Compact, maintenance-free, and easy-to-install design
Suitable for industrial automation and remote flow control
Applications
Industrial automation systems
Compressed air systems
Water supply and distribution
HVAC systems
Air compressors
Water treatment plants
Irrigation systems
Pneumatic equipment
Process control systems
General industrial fluid handling
Technical Specifications
Parameter Specification
Valve Size 1 Inch (25 mm)
Valve Type 2 Way Motorized Ball Valve
Wiring 3 Wire
Actuator Voltage 24VDC
Body Material Brass
Ball Material Chrome-Plated Brass
Seat Material PTFE
Connection Type BSP Female Thread
Operating Pressure Up to 16 Bar
Media Water, Air, Oil & Compatible Non-Corrosive Fluids
Operating Temperature 0°C to 90°C
Benefits
Reliable automatic ON/OFF flow control
Safe low-voltage (24VDC) operation
Compatible with PLCs, timers, and control systems
Durable brass construction for long service life
Leak-proof PTFE sealing for dependable performance
Low maintenance and energy-efficient operation
Ideal for industrial automation and process control
1 Inch 24VDC Motorized Ball Valve, 24VDC Electric Ball Valve, 2 Way Motorized Ball Valve, 3 Wire Motorized Ball Valve, Electrical Actuator Valve, Brass Motorized Ball Valve, Industrial Ball Valve, Automatic Flow Control Valve, PLC Control Valve, TruGet Motorized Ball Valve.
The TruGet 1 Inch 24VDC Motorized Ball Valve (2 Way, 3 Wire) with a durable brass body provides reliable automatic flow control for water, air, oil, and compatible non-corrosive fluids. Ideal for PLC-based automation, compressed air systems, HVAC, and industrial process control.
| Weight | 1 kg |
|---|---|
| Dimensions | 15 × 15 × 10 cm |
