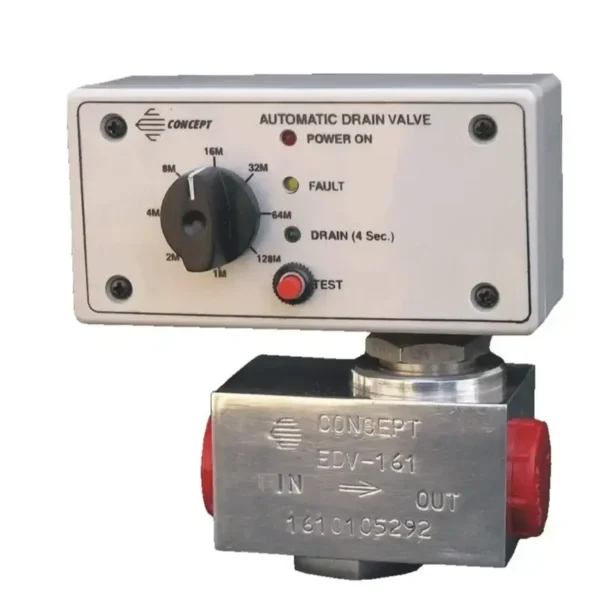

Concept Auto Drain Valve EDV 161
Original price was: ₹4,500.00.₹3,685.00Current price is: ₹3,685.00.
Concept EDV 161 Auto Drain Valve is a durable and efficient automatic condensate drain designed for compressed air systems with reliable timer-based operation.
Free Shipping
Customer Support
Assure Quality
Secure Payment
| Specification | Details |
|---|---|
| Material | Acrylonitrile Butadiene Styrene (ABS) |
| Brand | CONCEPT |
| Item Dimensions (L x W x H) | 20.3 x 2.5 x 12.7 Centimeters |
| Exterior Finish | ABS |
| Inlet Connection Size | 0.5 Inches |
| Inlet Connection Type | Flange |
Interval time – 1 – 256 min. Adjustable, drain time – 4 sec, supply voltage – 230 vac, (160 – 260), 50 Hz, (other on request)
Operating temp. – 70 degrees(maximum), housing material – high impact resistant ABS
Connection – din 43650 a with power indication, indications – LED (red), power – on, LED (yellow) – on after every 15 sec. Indicate healthyness of timer (available in most drain) LED (green)
Interval time – 1 – 256 min. Adjustable, drain time – 4 sec, supply voltage – 230 vac, (160 – 260), 50 Hz, (other on request), operating temp. – 70 degrees(maximum), housing material – high impact resistant ABS, connection – din 43650 a with power indication, indications – LED (red), power – on, LED (yellow) – on after every 15 sec. Indicate healthyness of timer (available in most drain) LED (green) – on during drain cycle, valve, type – 2/2 way direct acting, in/out ports – 1/2″ bsp (f), working pressure – 16kg. /Cm2, valve body – bar stack aluminium with anodizing, orific – 2. 5 mm.
Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.
Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.
Product details
Made possible by exploring innovative molded plywood techniques, Iskos-Berlin’s Soft Edge Chair blends strong curves with extreme lightness to create a three-dimensionality not usually possible with 2-D plywood.
Description
| Specification | Details |
|---|---|
| Material | Acrylonitrile Butadiene Styrene (ABS) |
| Brand | CONCEPT |
| Item Dimensions (L x W x H) | 20.3 x 2.5 x 12.7 Centimeters |
| Exterior Finish | ABS |
| Inlet Connection Size | 0.5 Inches |
| Inlet Connection Type | Flange |
Interval time – 1 – 256 min. Adjustable, drain time – 4 sec, supply voltage – 230 vac, (160 – 260), 50 Hz, (other on request)
Operating temp. – 70 degrees(maximum), housing material – high impact resistant ABS
Connection – din 43650 a with power indication, indications – LED (red), power – on, LED (yellow) – on after every 15 sec. Indicate healthyness of timer (available in most drain) LED (green)
Interval time – 1 – 256 min. Adjustable, drain time – 4 sec, supply voltage – 230 vac, (160 – 260), 50 Hz, (other on request), operating temp. – 70 degrees(maximum), housing material – high impact resistant ABS, connection – din 43650 a with power indication, indications – LED (red), power – on, LED (yellow) – on after every 15 sec. Indicate healthyness of timer (available in most drain) LED (green) – on during drain cycle, valve, type – 2/2 way direct acting, in/out ports – 1/2″ bsp (f), working pressure – 16kg. /Cm2, valve body – bar stack aluminium with anodizing, orific – 2. 5 mm.
